OpenDictation

From TeleFlow

This section provides screen shots and download information for OpenDictation, and open source version of TeleFlow Dictation used by physicians and doctors in the medical industry. This open source application was released on March 28, 2008, and is licensed under the GPL License. For support, and questions about this product, please refer to the OpenDictation section in the TeleFlow Forums.

Contents 1 Screen Shots 2 Download 3 Installation 3.1 Database 3.2 Web 3.3 TeleFlow for Windows 4 Knows Issues

Screen Shots

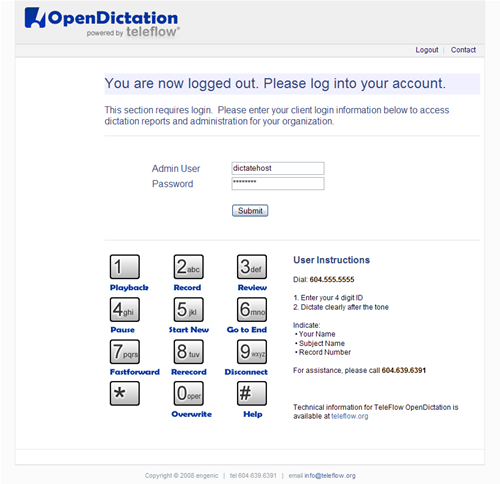

The following screen shows the login page for the OpenDictation administrator. The keypad graphic provides a configuration that can be modified to be any other configuration within the TeleFlow application.

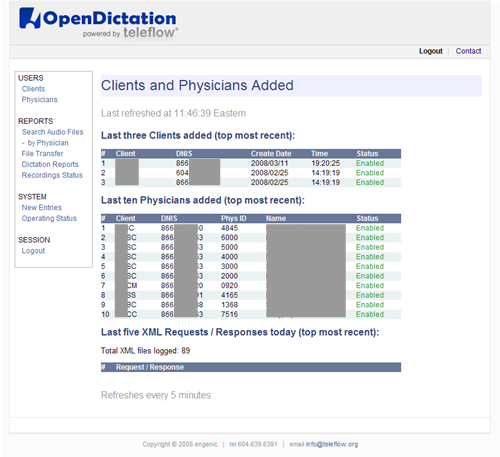

This screen shows recent Client and Physician provisioning which is provided using the XML Dictation Provisioning interface.

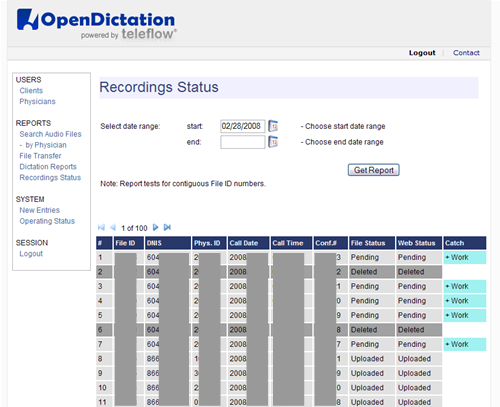

This report shows activity on the dictation environment.

Download

Download the TeleFlow and PHP files required to create the application from the following link:

http://teleflow.org/software/opensource/opendictation/OpenDictation.zip

Installation

The installation for the files related to OpenDictation is by no means automatic. Skills requires include knowledge of web services, PHP and MySQL.

Database

1. Create the database with the scripts included in the MySQL folder
2. Check the teleflow.org website for updates

Web

1. Modify LocalSettings.php to point to the datasource for the MySQL dictation database.
2. Logos can be adjusted in the /images directory.

TeleFlow for Windows

1. Find Main.Tam -> DB Connect: DSN=TFVoiceOffice (step 26)
2. Adjust it to use the MySQL dictation database (OpenOffice)

Knows Issues

The following list indicates known issues with the install.

• Database Name: The database name used PHP and TeleFlow will need to be harmonized.
